Made In Japan EXCELTONE(MR series)

EXCELTONE

Ceiling Board with outstanding humidity resistance (RH)

EXCELTONE(MR series)
EXCELTONE(MR series)HIGH NRC Board

PHYSICAL DATA SUMMARY

Representative data of EXCELTONE MR series 5/8" MN.

Physical Properties Test Method
Moisture content 2% JIS A 6301
Modulus of Rupture 17kgf/c㎥ JIS A 6301
Fire Propagation Test Class 0 B.S.476 Part 6
Flame Spread Class A (0-25) ASTM E84
0 Australian Standards 1530.3
20 UL723
Class 1 B.S.476 Part 7
Thermal Conductivity 0.045kcal/mh ̊C JIS A 1412
Light Reflectance Over 0.80 ASTM E1477
Sound Absorption Coefficient(NRC) 0.55 ASTM C423
Ceiling Attenuation Class(CAC) 36 Australian Standards 2499 (TWO-ROOM METHOD)

JIS: Japanese Industrial Standard

EXCELTONE Antibacterial and deodorant treatment

Anti-bacterium examination result

Bacteria Specimen Viable bacteria count /specimen (24hours later)
Escherichia coil (3.6×10⁴) Regular tile (non-Hospitone coating) 1.1×10²
Hospitone coating <10
bacteria specimen 2.6×10⁶
Pseudomonas aeruginosa (4.5×10⁴) Regular tile (non-Hospitone coating) 7.8×10⁶
Hospitone coating 10
bacteria specimen 2.2×10⁶
MRSA mejishirin methicillin resistant staphylococcus aurei (3.8×10⁴) Regular tile (non-Hospitone coating) 10
Hospitone coating <10
bacteria specimen 1.2×10⁶

Data of EXCELTONE MR series 3/4"High NRC MC

Physical Properties Test Method
Flame Spread Class A ASTM E84
Light Reflectance Over 0.80 ASTM E1477
Sound Absorption Coefficient(NRC) 0.75 ASTM C423
Ceiling Attenuation Class(CAC) 33 ASTM E1414

Test Method : drop each bacteria on specimen and stock - culture 24 hours at 36 ̊C and measure the bacteria count. Tested by Japan Food Research Laboratories.

image image

Eco Labels(EXCELTONE MR only)

  • Eco Labels

    Environmental Choice Australia

    DAIKEN EXCELTONE (MR series) Acoustic Ceiling Tiles submitted for verification meet the GECA environmental performance criteria and that the product scan successfully gain official registration as certified "Good Environmental Choice" products under the Australian Ecolabel Program.

  • Eco Labels

    Ecospecifier

    DAIKEN EXCELTONE (MR series) has been assessed and met the criteria for inclusion on ecospecifier.org. In addition, a Green Rate
    Green Building Scheme Pre-Assessment has been conducted and found this products is likely to contribute to the achievement of Green Building rating tool credits.

  • Eco Labels

    ISO:International Organization for Standardization

    [ISO 14001]
    related to Environmental Management Systems
    [ISO9001]
    related to Quality Management Systems
    (Registered Scope) http://www.jtccm.or.jp/

Variation

  • MD

    ▲MD

  • MN

    ▲MN

  • MC

    ▲MC*1

  • MA

    ▲MA*1

  • MP

    ▲MP*1

  • MV

    ▲MV*1

EXCELTONE MR series Thickness (nominal) Standard Size Edge
Exposed Board 1/2˝, 5/8˝ 24˝ x 24˝ (o.c.)
24˝ x 48˝ (o.c.)
600 x 600mm (o.c.)
600 x 1,200mm (o.c.)
4 sides: Trimmed
4 sides: Trimmed.
Semi-concealed Tile 15mm 400 x 1,500mm
500 x 1,500mm
Semi-concealed Tile
Long sides: Kerf and rabbet, Square edges.

Short sides: Trimmed.
Shiplap Tile 15mm 400 x 1,500mm
500 x 1,500mm
Shiplap Tile
Long sides: Shiplap, bevel edges.

Short sides: Trimmed.
Reveal Tile 5/8˝ 24˝ x 24˝ (o.c.)
24˝ x 48˝ (o.c.)
600 x 600mm (o.c.)
600 x 1,200mm (o.c.)
Reveal Tile
4 sides: Revealed, Square edges.
13mm 24˝ x 24˝ (o.c.)
24˝ x 48˝ (o.c.)
600 x 600mm (o.c.)
600 x 1,200mm (o.c.)
4 sides: Revealed, Square edges.
4 sides: Revealed, Square edges.
Slim-line Tile 5/8˝
13mm
24˝ x 24˝ (o.c.)
24˝ x 48˝ (o.c.)
600 x 600mm (o.c.)
600 x 1,200mm (o.c.)
4 sides: Slim-line revealed, square edges.
4 sides: Slim-line revealed, square edges.

*1 MC, MA, MP and MV pattern has no square edge Semi-Concealed Tile.

  • MLC-10N

    ▲MLC-10N

  • MLC-20N

    ▲MLC-20N

  • MLC-40N

    ▲MLC-40N

  • MLC-41N

    ▲MLC-41N

EXCELTONE MR series Thickness (nominal) Standard Size Edge
Reveal Tile 5/8˝ 24˝ x 24˝ (o.c.)
24˝ x 48˝ (o.c.)
600 x 600mm (o.c.)
600 x 1,200mm (o.c.)
4 sides: Revealed, square edges.
4 sides: Revealed, square edges.
  • MLC-9N

    ▲MLC-9N

  • MLC-16N

    ▲MLC-16N

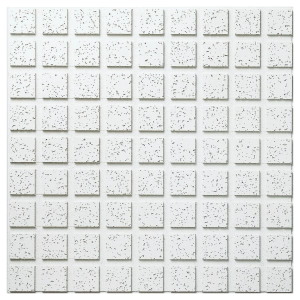

  • MLC-64N

    ▲MLC-64N

  • MLC-81N

    ▲MLC-81N

EXCELTONE MR series Thickness (nominal) Standard Size Edge
Slim-line Tile 15mm 24˝ x 24˝ (o.c.)
600 x 600mm (o.c.)

4 sides: Slim-line revealed, square edges.
