YX-169 Adhesive-type flooring for remodeling
- Low VOC
- Antibacterial
- Slip resistant
- Scratch resistant
- Wheelchair OK
- Durable against casters
- Wax free
- Stain resistant
Adhesive treatment on the back surface
Easy installation just by putting Floor renovation can be completed in a short period of work.
Screw free, adhesives free. Installation is quiet and quick.
Enhanced easy-care features
-
Wax free
Waxing is not necessary for this easy-care product.
-
Dent and scratch proof
This product has a strong resistance to dents and scratches that can be caused when objects are dragged. This high resistance property allows the use of chairs with caster wheels and wheelchairs.
-
Scratch proof
The Scratch-Guard function is implemented.
* The product in the above picture is different from the product described in this section.
Variation
This product is popular for its width and precious-wood design which come with five color options. Selection is possible according to the fixtures and furniture.
-
MH <ASH (Super pale)>
-
10 <BIRCH>
-
72 <WALNUT (Light)>
-
73 <WALNUT (Dark)>
-
13 <CHERRY>
-
YX169-■■
* The ■■ in the product stock numbers represent the surface color and texture.
When ordering, please use the alphanumeric letters to specify the product.
Specifications
| Dimensions | 4 mm thick, 150 x 900 mm |
|---|---|
| Packing material, quantity | Cardboard case, 12 pieces (1.62 m²) per case |
| Package weight | Approx. 6 kg/package |
| Base material | MDF |
| Front surface | Special olefin sheet |
| Back surface | PVC sheet and adhesive with non-woven fabric |
| Edge processing | Cutting off and chamfering on all sides |
| Formaldehyde regulations | F4-rank according to Labeling Guidelines for Housing Performance |
■ Plain View
■ Cross-sectional View
Fittings
MDF type
Entrance fitting

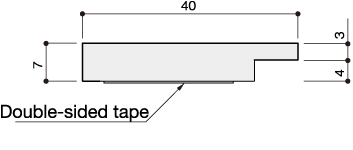

■ Cross-sectional View
■ Arrangement
1,950 mm type: 40 × 1,950 mm (1 piece per package), YXZ018-■■
Color and texture variation
MH <ASH (Super pale)>
10 <BIRCH>
72 <WALNUT (Light)>
73 <WALNUT (Dark)>
13 <CHERRY>
Specifications
| Dimensions | 7 mm thick, 40 × 1,950 mm |
|---|---|
| Packing material, quantity | 1 piece/package |
| Package weight | Approx. 1.0 kg/package |
| Base material | MDF |
| Front surface | Special olefin sheet |
| Back surface | Special double-sided tape attached |
| Formaldehyde regulations | Unregulated parts |
* Special adhesive for the wall or step parting included in a package
* The ■■ in the product stock numbers represent the surface color and texture. When ordering, please use the above alphanumeric letters to specify the product.
Resin type
Wall parting
72 <WALNUT (Light)>
■ Cross-sectional View
■ Arrangement
1,950 mm type: 15 × 1,950 mm (2 pieces per package)
YR0321-■■
Step parting
72 <WALNUT (Light)>
■ Cross-sectional View
■ Arrangement
1,950 mm type: 20 × 1,950 mm (2 pieces per package)
YR0323-■■
Color and texture variation
MH <ASH (Super pale)>
10 <BIRCH>
72 <WALNUT (Light)>
73 <WALNUT (Dark)>
13 <CHERRY>
Specifications
| Dimensions | (Wall parting) 5.7 mm thick, 15 × 1,950 mm, (Step parting) 5.7 mm thick, 20 × 1,950 mm |
|---|---|
| Packing material, quantity | (Wall parting) 2 pieces/package, (Step parting) 2 pieces/package |
| Package weight | Approx. 0.8 kg/package |
| Base material | ABS resin (with wood meal) |
| Back surface | Special double-sided tape attached |
| Formaldehyde regulations | Unregulated parts |
* Special adhesive for the wall or step parting included in a package
* The ■■ in the product stock numbers represent the surface color and texture. When ordering, please use the above alphanumeric letters to specify the product.

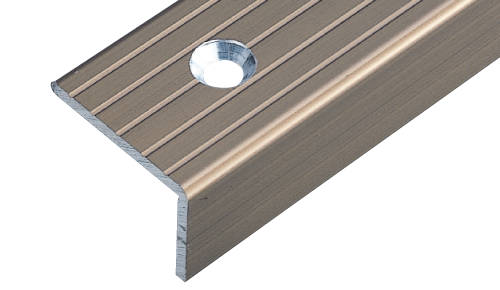

Aluminum type
Aluminum-type Step parting 3T
for 4 mm thick flooring
<BRONZE>
1,950 mm type: 22 × 1,950 mm (2 pieces per package)
YR0623-ZB
Aluminum-type Step parting 3T
for 4 mm thick flooring
<SILVER>
1,950 mm type: 22 × 1,950 mm (2 pieces per package)
YR0623-ZS
Specifications
| Dimensions | 1.5 mm thickness, 22 × 1,950 mm |
|---|---|
| Packing material, quantity | 2 pieces per package (Double-sided positioning tape and screws included in a package) |
| Package weight | Approx. 0.7 kg/package |
| Base material | Aluminum |
| Front surface | (Anodized aluminum finish) |
| Formaldehyde regulations | Unregulated parts |
■ Cross-sectional View
■ Arrangement
PRODUCTS LINEUP
* The performance values and the certification labels are based on the Japanese test method and standards.
* DAIKEN CORPORATION does not guarantee that the products listed here conform to the laws and regulations of the country or region where they are being used.
* The above flooring materials are not designed for use with shoes on.
